7M 40W Solar Street Light With Gel Battery

Short Description:

Power: 40W

Material: Die-cast Aluminum

LED Chip: Luxeon 3030

Light Efficiency: >100lm/W

CCT: 3000-6500k

Viewing Angle: 120°

IP: 65

Working Environment: 30℃~+70℃


Product Detail

Product Tags

solar street light

COMPANY ADVANTAGES

-Strong New Product Development Capacity
Guided by market demand, we invest 15% of our net profit every year into new product development. We invest the money in consulting expertise, developing new product models, researching new technologies and conducting a large number of tests. Our focus is to make the solar street lighting system more integrated, smarter and easier for maintenance.

-Timely and Efficient Customer Service
Available 24/7 via email, WhatsApp, Wechat and over the phone, we serve our customers with a team of salespeople and engineers. A strong technical background plus good multilingual communication skills enable us to give quick answers to most of the customers’ technical questions. Our service team always flies to the customers and gives them technical support onsite.

-Rich Project Experiences
So far, more than 650,000 sets of our solar lights have been installed in more than 1000 installation sites in more than 85 countries.

CERTIFICATION

Product Certification

Product certification

Factory Certification

Factory certification
6M 30W SOLAR LED STREET LIGHT

7M 40W SOLAR LED STREET LIGHT

Power 40W 6M 30W6M 30W
Material Die-cast Aluminum
LED Chip Luxeon 3030
Light Efficiency >100lm/W
CCT: 3000-6500k
Viewing Angle: 120°
IP 65
Working Environment: 30℃~+70℃
MONO SOLAR PANEL

MONO SOLAR PANEL

Module 120W MONO SOLAR PANEL
Encapsulation Glass/EVA/Cells/EVA/TPT
Efficiency of solar cells 18%
Tolerance ±3%
Voltage at max power(VMP) 18V
Current at max power(IMP) 6.67A
Open circuit voltage(VOC) 22V
Short circuit current(ISC) 6.75A
Diodes 1by-pass
Protection Class IP65
Operate temp.scope -40/+70℃
Relative humidity 0 to 1005
Warranty  PM is not less than 90% in 10 years and 80% in 15 Years

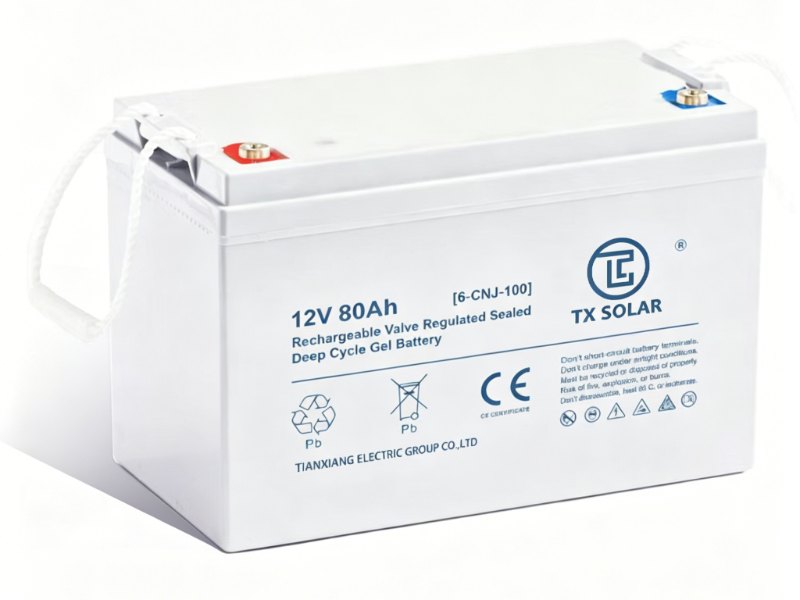

BATTERY

BATTERY

Rated Voltage 12V

 BATTERY

BATTERY1

Rated Capacity 80 Ah
Approximate Weight(kg,±3%) 25KG
Terminal Cable2.5mm²×2 m
Maximum Charge Current 10 A
Ambient Temperature -35~55 ℃
Dimension Length (mm,±3%) 329mm
Width (mm,±3%) 172mm
Height (mm,±3%) 214mm
Case ABS
Warranty 3years
10A 12V SOLAR CONTROLLER

10A 12V SOLAR CONTROLLER

Rated working voltage 10A DC12V BATTERY
Max. discharging current 10A
Max. charging current 10A
Output voltage range Max panel/ 12V 150WP solar panel
The precision of constant current ≤3%
Constant current efficiency 96%
levels of protection IP67
no-load current ≤5mA
Over-charging voltage protection 12V
Over-discharging voltage protection 12V
Exit over-discharging voltage protection 12V
Turn on voltage 2~20V
Size 60*76*22MM
Weight 168g
Warranty 3years
solar street light

POLE

Material Q235

BATTERY

Height 7M
Diameter 80/170mm
Thickness 3.5mm
Light Arm 60*2.5*1500mm
Anchor Bolt 4-M18-700mm
Flange 320*320*14mm
Surface Treatment Hot dip galvanized+ Powder Coating
Warranty 20 Years
