Galvanized Steel Electric Transmission Pole

Short Description:

Galvanized steel electric transmission poles are widely used in high-voltage transmission lines, distribution networks, communication lines and other fields, and are an indispensable and important part of modern power infrastructure.


  • Place of Origin: Jiangsu, China
  • Material: Steel, Metal
  • Height: 8m 9m 10m
  • MOQ: 1 Set
  • Product Detail

    Product Tags

    PRODUCT DESCRIPTION

    Electric Pole

    First, the galvanized layer on the steel electric transmission pole effectively prevents the steel from contact with moisture and oxygen in the environment, extending its service life. The steel itself has high strength and can withstand large wind loads and other external forces. Compared with concrete power poles, galvanized steel electric transmission poles are lighter and easier to transport and install. We can customize power poles of different heights and specifications according to different design requirements and environmental conditions.

    PRODUCT DATA

    Product Name Galvanized Steel Electric Transmission Pole
    Material Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
    Height 8M 9M 10M
    Dimensions(d/D) 80mm/180mm 80mm/190mm 85mm/200mm
    Thickness 3.5mm 3.75mm 4.0mm
    Flange 320mm*18mm 350mm*18mm 400mm*20mm
    Tolerance of dimension ±2/%
    Minimum yield strength 285Mpa
    Max ultimate tensile strength 415Mpa
    Anti-corrosion performance Class II
    Against earthquake grade 10
    Color Customized
    Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
    Stiffener With a big size to strengthen the pole to resist the wind
    Wind Resistance According to local weather conditions, the General design strength of wind resistance is ≥150KM/H
    Welding Standard No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
    Hot-Dip Galvanized Thickness of hot-galvanized>80um.Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after the maul test.
    Anchor bolts Optional
    Material Aluminium,SS304 is available
    Passivation Available

    PRODUCT DISPLAY

    Galvanized Steel Electric Transmission Pole

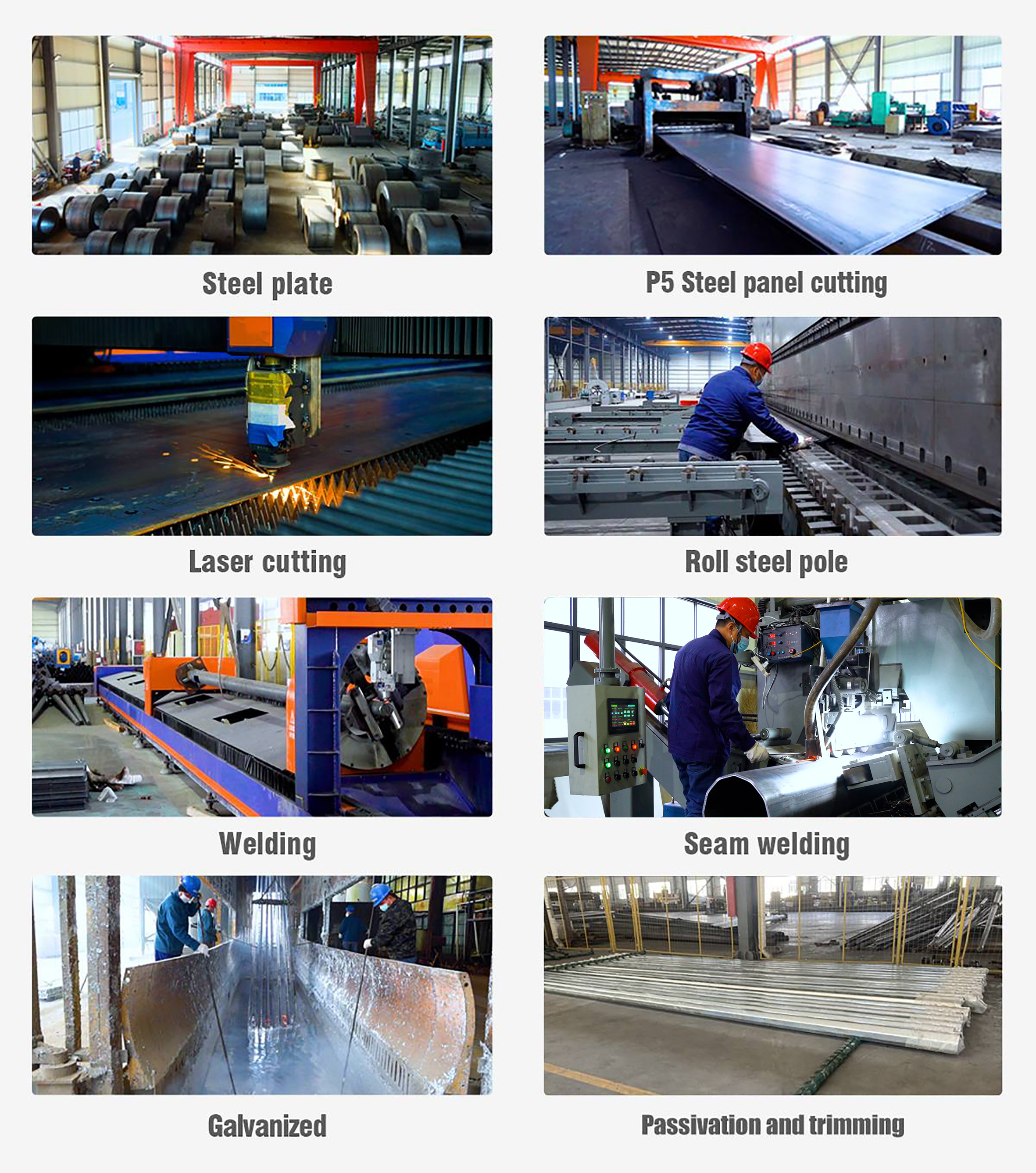

    MANUFACTURING PROCESS

    Overhead Electric Pole Manufacturing Process

    OUR COMPANY

    company information

    FAQ

    Q1: What is your brand?

    A: Our brand is TIANXIANG. We specialize in stainless steel light poles.

    Q2: How can I get the price of light poles?

    A: Please send us the drawing with all specifications and we will give you an accurate price. Or please provide the dimensions such as height, wall thickness, material, top and bottom diameter.

    Q3: We have our own drawings. Can you help me produce samples of our design?

    A: Yes, we can. We have CAD and 3D model engineers and can design samples for you.

    Q4: I am a small wholesaler. I am doing small projects. Do you accept small orders?

    A: Yes, we accept a minimum order of 1 piece. We are willing to grow with you.
